Products>RELAY
> LR1-D THERMAL
RELAY |
|
|
|
• APPLICATION |
| |

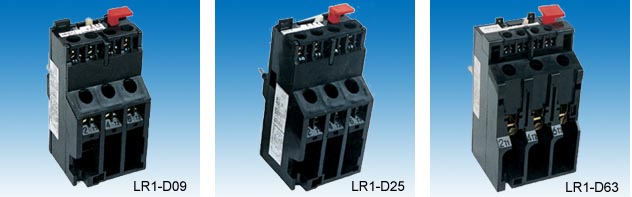

LR1-Dseries
thermal relay is suitable for thermal protection in the
circuit with AC 50 or 60Hz, voltage up to 660V, motor
power up to 45KW or less, it has different attachment and
temperature compensating function, It can be fixed on to
contactor and can also be fixed independently.
The product is made in accordance with IEC292-1
LR1-Dseries thermal relay has kinds of species, 9A, 12A,
16A, 25A, 40A, 63A, 80A. |
|
|
|

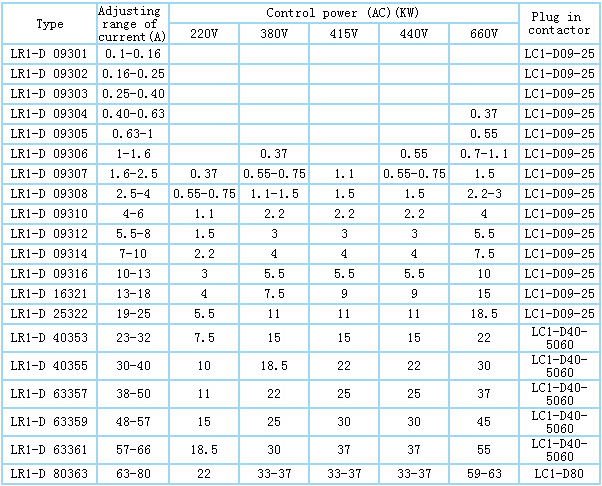

• TECHNICAL SPECIFICATION |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
| |
