Products>RELAY

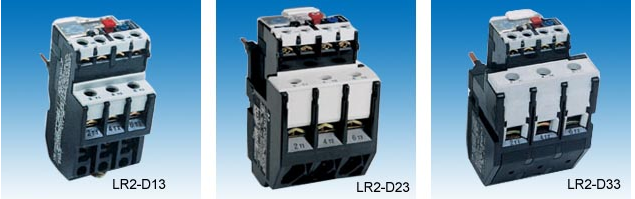

> LR2-D THERMAL
RELAY |
|
|
|
• APPLICATION |
| |
This series of thermal relay can be used in the circuit of
50Hz or 60Hz, rated insulation voltage 660V, rated current
0.1-93A for protecting the phase break when the electric
motor is overload.
The relay has different mechanism and temperature
compensation & can be plunged in LC1-D series AC contact
it is the most advanced thermal relay in the nineties in
the world.
CHARACTERISTICS:
a. Fundamental parameter of the main circuit
a). Rated insulation voltage 660V
b). Rated working current 25, 36, 93A separately.
c). The regulator seal of rated setting current and
setting.

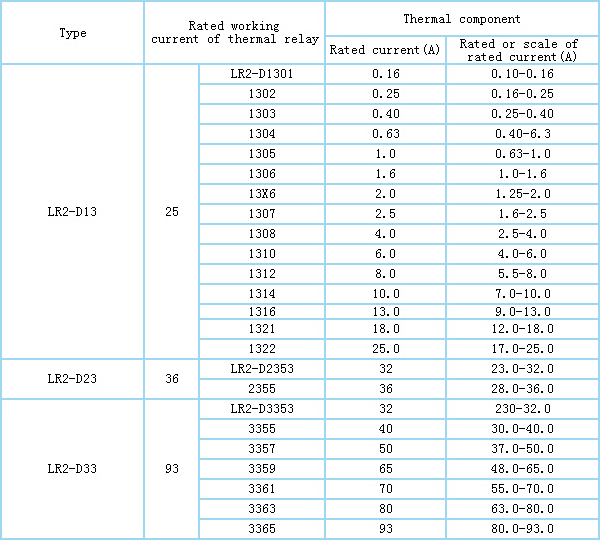

d). Current of the Thermal component (see list 1)
b. Auxiliary Circuit
a). There is one pair of NO/and N/C contact with electric
insulation.
b). Rated insulation Voltage 500V
c). Rated frequency 50-60Hz
d). Use group rated working voltage, appoints thermal
current and rated current. |
|
|
|
• TECHNICAL SPECIFICATION |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
| |
