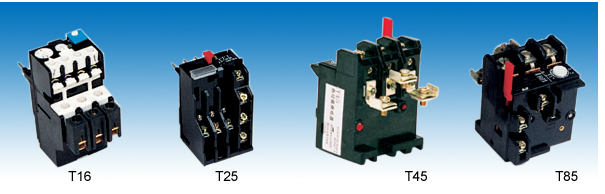

> T THERMAL RELAY |
|
|
|
• APPLICATION |
| |
The
relay is suitable for using in the power circuits up to
rated voltage 660V rated current 500A 50Hz or 60Hz for
overload and loss of phase protection or three phase
induction motor and often combined with B series AC
contactor into magnetic starter, T16 & T25 thermal relays
have a friction trip operating mechanism with loss of
phase running protection, pullback spring trip operating
mechanism (jump mechanism) with loss of phase protection
for T85 & TSA45, back jump mechanism for T170 & T105, main
circuit with instrument transformer jump mechanism with
loss of phase for T250 & T370. |
|
|
|

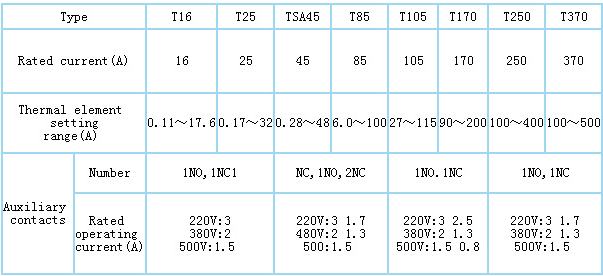

• TECHNICAL SPECIFICATION |
|
|
 |
|
|
|
|
|
|
|
|
| |
